Logos Computed Radiography (CR) Portable X-ray Systems

Product introduction

Brief

The LOGOS Digital Imaging System offers users a truly portable Computed Radiography (CR) product designed to be field deployable. With a footprint measuring 31 inches x 23 inches, the complete Pelican case mounted system fits in a typical response vehicle for easy transport to and from the work site. Additionally, the soft-sided carrying case option offers users the flexibility of choosing a smaller, one-man portable design.

Highlight

Computed Radiography System

Greater than 4lp/mm 16bit Images

On target equipment weight less than 20 lbs (9kg)

Contact free Image Processing

Technical Data
Height: 15.5”, 39.4 cm

Width: 19.4”, 49.3 cm

Depth: 10.8”, 27.4 cm

Weight: 35 lbs, 16 kg

Interface Cable: USB 2.0 Cable

Power Consumption: 150 watts max (with integrated eraser)

Laser Classification: Compliance per DHHS Radiation Performance Standards 21 CFR, 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. Also complies with IEC60825-1/A2: 2001 Class 1 Laser Device

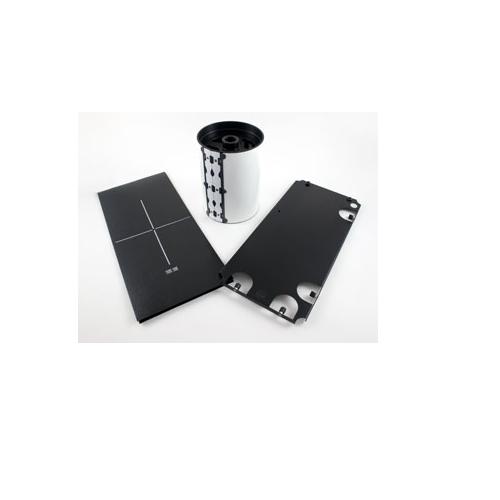

Image Plate Size: 8”x10”, 20 x 25 cm
