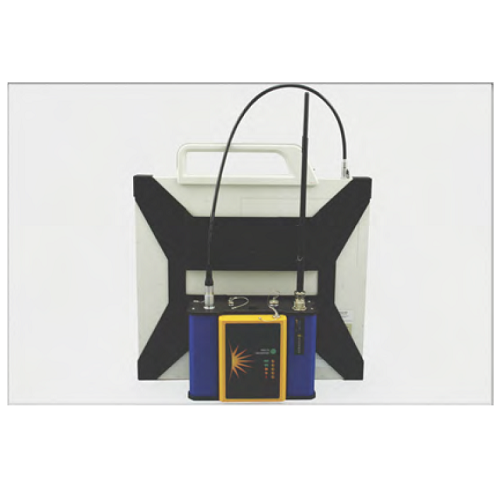

DR system ORAMA

Product description: Logos Imaging’s ORAMA is our largest Direct Radiography (DR) imaging system. The 14×17 ORAMA has an imaging area that is 75% larger than the NEOS system, while offering the dame excellent resolution

Product introduction

Brief

Logos Imaging’s ORAMA is our largest Direct Radiography (DR) imaging system. The 14×17 ORAMA has an imaging area that is 75% larger than the NEOS system, while offering the dame excellent resolution and sensitivity.

The ORAMA system is fully portable and field ready. From any of the three carrying case options, the system can be deployed in less than five minutes and has an on target weight of under 16 pounds, excluding the x-ray source.

When used with the logos Imaging software application, the ORAMA is a user-friendly, cost-effective digital x-ray tool For your everyday imaging needs.

Highlight

Includes Full Wired and Full Wireless

High Image Resolution, 127μm Pixel Size

FullyBatteryPowered with Hot-Swappable Batteries

Compatible with All 5 Pin Golden Engineering Sources

Technical Data

Technology: Amorphous Silicon with TFT

Scintillator: Gadox

Pixel Area: 42.3×35.8cm, 16.7″×14.1″

Pixel Matrix: 3328×2816 pixels

Pixel Size: 127μm

Limiting Resolution: max.3.9lp/mm
