Syringe printing machine

Product description: The machine uses the rotary pad principle to print onto syringes over 360° with a high print quality and high print position accuracy. The syringes are automatically supplied to the revolverhead for f

Product introduction

Gneral

Printing International is specialised in the design and production of printing machines for the pharmaceutical and medical device market.

Since 1974 we are using our experience in order to deliver a finished product that complies with the strictest requirements of the sector. These printing machines are sold to the leading players in the medical device industry worldwide to print on syringes, bottles, catheters, inhalers, drug delivery systems, infusion and transfusion sets, injection devices, bags, pouches, filters, caps and closures, pumps, jars, ...

Another range of machines is made for the pharmaceutical sector to print on tablets, soft gel capsules, hard gel capsules, freeze-dried tablets, …

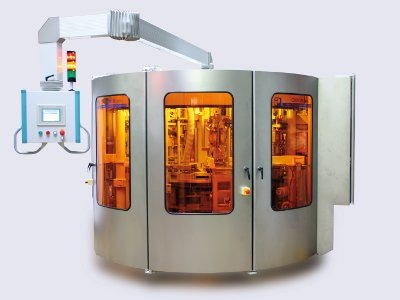

Chiron Ringprint

With the Chiron Ringprint it is possible to print onto your product integrating our latest technologies in the field of distribution, piece orientation, camera control and exit sorting.

This machine is a new, modern and modular installation, enabling you to find an adapted solution for all types of products and designs, showing an unequalled precision and decoration quality.

Both pneumatical and servo drive versions can be equipped with up to 6 modules of closed ink cups 90, 130 or160mmand can integrate multiple decoration solutions.

Syringe printing machine:

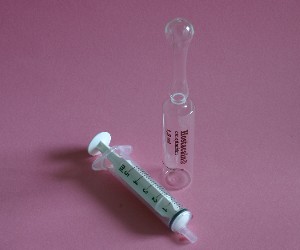

The machine uses the rotary pad principle to print onto syringes over 360° with a high print quality and high print position accuracy. The syringes are automatically supplied to the revolverhead for fixation onto the mandrels.

The syringes are pretreated, printed, dried and then unloaded by an automatic ejection system. The capacity depends on the exact syringe dimensions:

1 ml : 15 000/hour

5 ml : 12 000/hour

10 ml : 8 000/hour

20 ml : 7 500/hour

Also a vision system to control the print quality can be installed as an option on the machine.

The patented print technology offers the following advantages:

* high resolution

* continuous high quality print process thanks to constant ink viscosity level

(no evaporation of the solvents thanks to the closed ink cups => also less waste of ink)

* correct print at the required position on the product

* printing with USP Class VI inks
