CCD Cameras (HR)

Product introduction

Applications:
• Microdiffraction
• X-ray imaging
• X-ray micro CT
• Laue imaging
• Protein crystallography at up to 50 keV
• Gisaxs
• Powder Diffraction
• Non Destructive Testing
• Phase Contrast Imaging
• Small animal imaging
• Small Angle X-ray Scattering

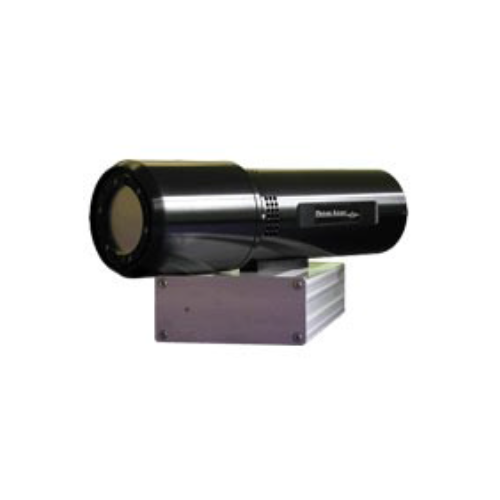

X-ray intensified megapixel HR CCD camera

• 1392 (h) x 1040 (v) CCD array
• Input  pixel  size  :   available  from  5.2  x  5.2; 10.37 x 10.37; 14.4 x 14.4; 28.8 x 28.8 and up
to 40.31 x 40.31 microns
• Input size : available from 7.3 x 5.4 mm; 14.4 x  10.8  mm;  20.5  x  14.9  mm;  40.1  x  30  mm
and 56.11 x 41.92 mm respectively
• High  resolution  intensifier  with  55  lp/mm resolution
• 11 fps at full resolution @ 20 MHz and 5 fps @ 10 MHz
• Full well capacity : 13,000 electrons in binning 1x1; 22,000 electrons in binning 2x2
• Readout noise : 5-7 electrons @ 10 MHz with interpolation noise reduction
• 12-bit digitisation
• 16-bit extended dynamic range
• GdOS:Tb scintillator for operation from 5-55 keV with minimum feature recognition

of 10 lp/mm : typically 12 microns for the smallest input size up to 50 microns

for the largest input size.

X-ray intensified 4 megapixel HR CCD camera

• 2048 (h) x 2048 (v) CCD array
• Input  pixel  size  :   available  from  7.4  x  7.4; 17.3 x 17.3; 25.9 x 25.9 microns
• 20.5 x 14.9 mm; 40.1 x 30 mm and 56.11 x 41.92 mm respectively
• High resolution intensifier with 55 lp / mm resolution
• 2 fps at full resolution @ 12 MHz
• 3.5  fps  in  binning  2x2  @  1024  x  1024 resolution
• Readout  noise  :  7-9  electrons  @  12  MHz with interpolation noise reduction
• Full  well  capacity  :  40,000  electrons  in binning   1x1 80,000  electrons  in  binning 2x2

• 16-bit extended dynamic range
• USB 2.0 interface
• Synchronisation / control : via TTL pulse
