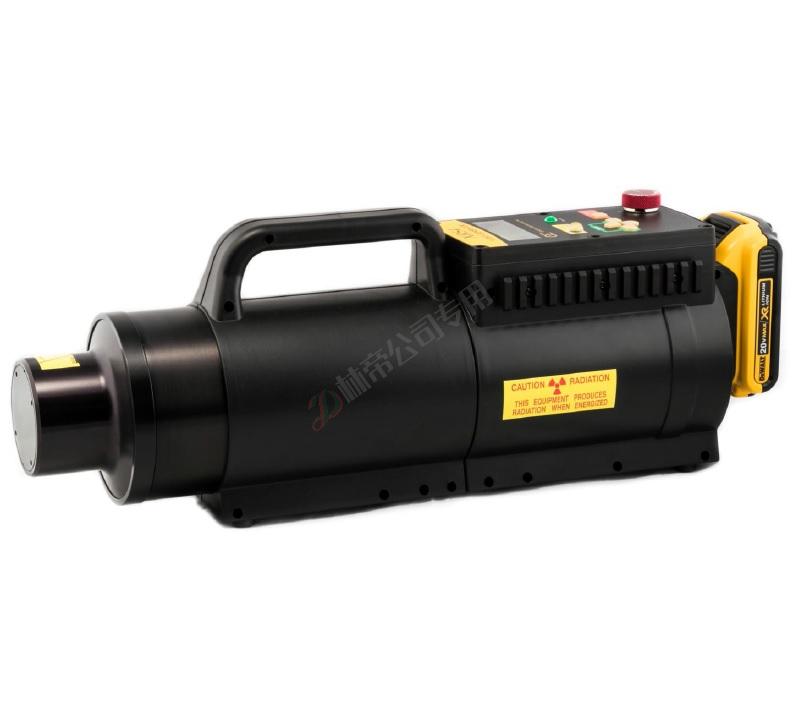

Golden Engineering Impulse X-Ray Machine XRS-4

Product introduction

XRS-4 is a light duty X-ray machine, can generate high energy of x-ray within a very shot time (15 seconds). When testing in front of the machine, the dose is around 5MR at the distance of 12″ (30.50cm) to the machine. It can penetrate 2″ (5.08cm) of steel when using a digital imaging system. When on site inspection or outdoor inspection, the pulsed x-ray technical has its extraordinary advantage compared with traditional constant potentials x-ray system and radioactive X-ray.

Portability

* light, compact, with strong ability of penetration

* pulsed technical, can gain a high output voltage with minimum input voltage

* Dewalt battery unit, electronic control module and high power tube, designed into one package, easy portable

* Weight:22 lbs(10.5kg)

* Out put voltage: 370kVP

Cost-effective

* Lower cost than other technical

* manage cost effective than radioactive x-ray

* Save time and labor

Convenient

* Simple, user friend interface, with adjustable for pulse setting

* Can used for CR, DR digital imaging system and high speed film

* Can be mount on a tripod or other fixture tool

Safety

* The leakage is the minimum at the side and back of the X-ray machine. The safety distance for the operator is more than 20 feets (around6.1M) at the back of the machine.
