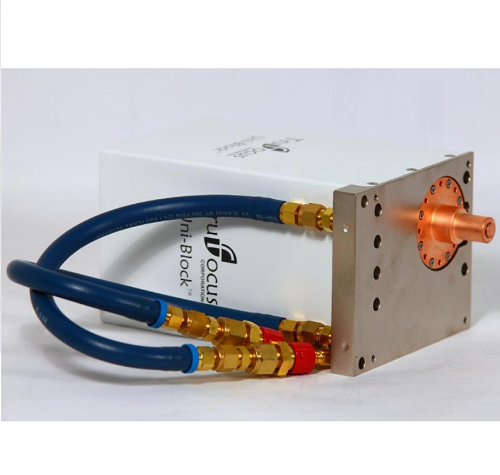

X-ray Source UNI-Block-MAX
- Trufocus（U.S.）
- Product description: Max-UNI-Block X-Ray Source, integrates Trufocus’s high quality X-Ray source, an extremely stable power supply with a programmable interface in a fully shielded housing.
Product introduction
Brief
MAX-UNI-Block X-Ray Source, is part of Trufocus’’s MAX UNI poroduct family and integrates Trufocus’s high quality X-Ray source, an extremely stable power supply with a programmable interface in a fully shielded housing.
Highlight

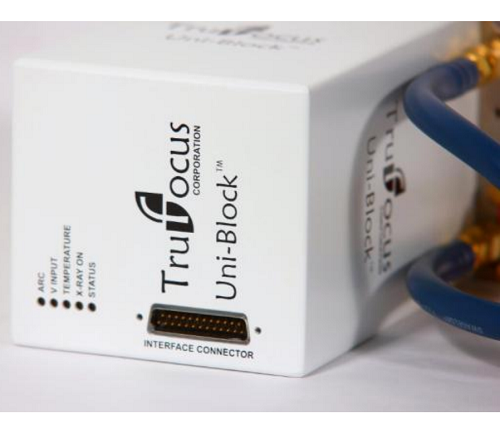

Control Interface: Fully programmable control interface (rear D-Sub 25 pin connector)
Fault Detection & Monitor: Temperature, Interlock, Cooling Flow
Focal Spot Size:0.2 mm,
Stability: 0.01% Relative Standard Deviation (average) over a 48 hour period of continual operation.
Controller
Programmable kV input
Programmable mA input
Fault Detection & Monitoring
HV Monitor output
mA Monitor output
Calibration output
Interlock Status input
System Fault detection
Pressure Fault Detection
Tube Over-Power Fault Detection
Tube Over-Power Monitor output kV input
Programmable mA input
Applications
Analystical
Stress Analysis
Thickness Gauging
Particle Analysis
Spectroscopy Soft X-Ray
Radiology
Isotope Replacement
Fluorescence
Densitometry
Technical Data
|
Model |
Min. Voltage |
Max. Voltage |
Max. Current |
Max. Power |
Focal Spot |
Angle |
|
MAX-UNI-L-4-2-10-W-W |
-17 kV |
-40 kV |
2 mA |
80 W |
0.2mm |
X=30° Y=20° |
|
MAX-UNI-L-5-2-10-W-W |
-17 kV |
-50 kV |
2 mA |
100 W |
0.2 mm |
X=30° Y=20° |
|
MAX-UNI-L-6-2-10-W-W |
-17 kV |
-60 kV |
2 mA |
120 W |
0.2 mm |
X=30° Y=20° |
|
MAX-UNI-L-8-2-10-W-W |
-17 kV |
-80 kV |
2 mA |
160 W |
0.2 mm |
X=30° Y=20° |
|
MAX-UNI-S-4-2-10-W-W |
-17 kV |
-40 kV |
2 mA |
80 W |
0.2 mm |
X=62.75 Y=41.50° |
|
MAX-UNI-S-5-2-10-W-W |
-17 kV |
-50 kV |
2 mA |
100 W |
0.2 mm |
X=62.75 Y=41.50° |
|
MAX-UNI-S-6-2-10-W-W |
-17 kV |
-60 kV |
2 mA |
120 W |
0.2 mm |
X=62.75 Y=41.50° |
|
MAX-UNI-S-8-2-10-W-W |
-17 kV |
-80 kV |
2 mA |
160 W |
0.2 mm |
X=62.75 Y=41.50° |
