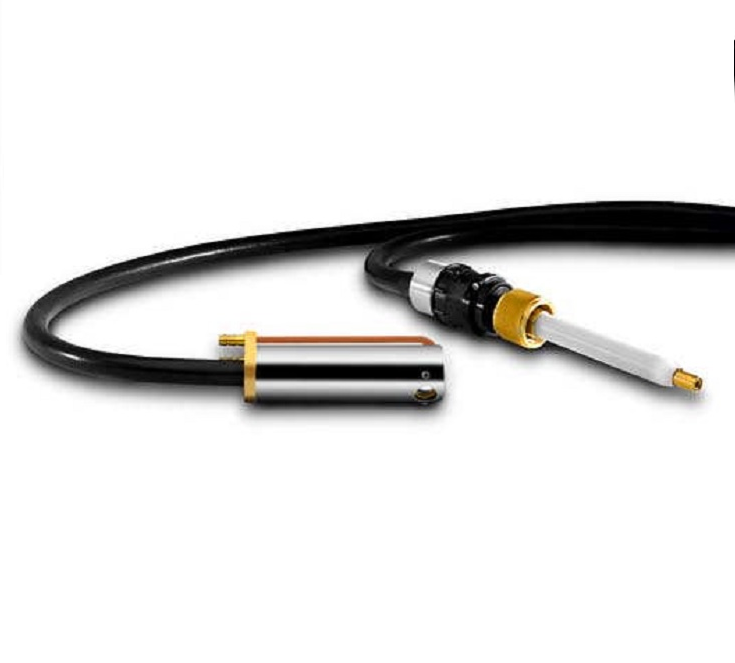

Sealed X-ray Source TFS-3007-HP

Product introduction

Brief

The TFS-3007-HP is an industrial X-ray tube that is suited for a wide variety of analytical

applications.

Technical Data

Target Voltage: 5 to 30 kV

Target Current: 10 mA max

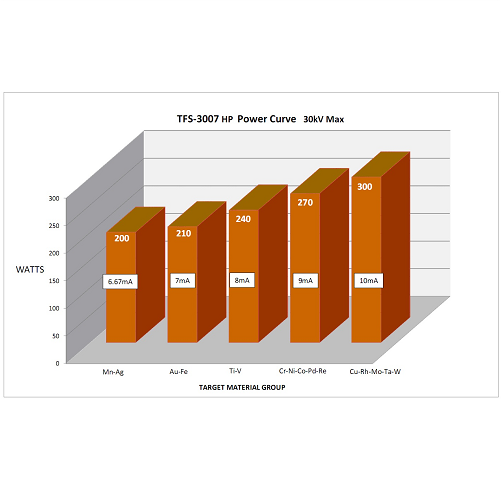

Maximum Power: 300 Watts
Target Material:Tungsten

Operating Temperature: 55 C max

Target Materials Available  Ag   Au   Co   Cr   Cu   Fe   Mn   Mo   Ni   Pd   Rh   Ta   Ti   W
Target Angle:24 Degrees

Window Material:Beryllium

Window Thickness: 0.005” (other thicknesses available)
Focal Spot Size:0.5 mm

Weight  0.8 lbs

Filament:2.5 V max @ 2.1 A max
Flux Stability: Does not exceed .2% relative standard deviation over a 4 hour period when used with an appropriate power supply.
Cooling: Liquid: using a solution of 50% propylene glycol in water.

Note:

The user has the responsibility to install the x-ray source into a x-ray radiation protection equipment.

This data is for Wu target, other target material may cause slight different.

Any change of the data, please inquiry Trufocus Company.
