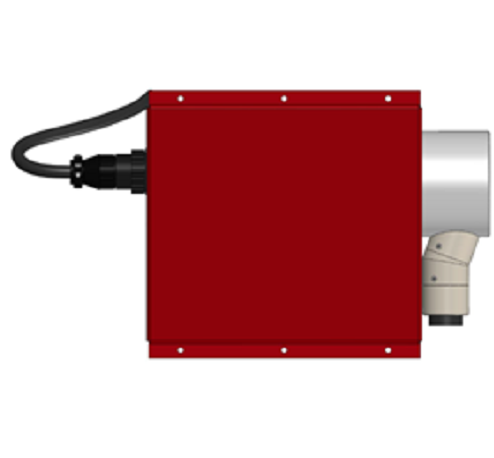

Microfocus X-ray Source TFX-9080-EWC-UNI-C
- Trufocus(U.S.)
- Product description: TFX-9080-EWC-UNI-C X-Ray source integrates a MicroFocus X-ray tube (≤8 μm in Focal Spot Size) and a High Voltage Power Supply (80kV, 1mA) in one unit.
Product introduction
TFX-9080-EWC-UNI-C X-Ray source is part of the Trufocus 9000 series MicroFocus Tube family. The unit integrates a MicroFocus X-ray tube (≤8 μm in Focal Spot Size) and a High Voltage Power Supply (80kV, 1mA) in one unit. This unit was developed to fulfill the need for high resolution imaging system produces exceptional image quality and focus sharpness.
