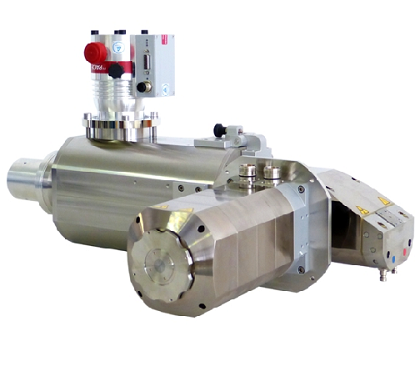

Microfocus X-ray Source XC
- Ray WorX （Germany）
- Product description: X-Ray WorX developed microfocus x-ray source with exchangeable tube head, XC Series.
Product introduction
Company Brief
X-RAY WorX is one of the world's leading independent producers of high-resolution microfocus X-ray tubes for non-destructive material testing in industry and research. Applications for microfocus X-ray tubes are among others X-ray microscopy, high-resolution computed tomography (CT) and digital radiography with rod anode tubes.
X-RAY WorX pursues the objective to develop microfocus X-ray tubes and to provide services that help customers to operate their X-ray systems efficiently, reliably and safely with high availability to meet today´s and future quality requirements and standards.
Highlights
Exchangeable tube heads with automatic recognition
Ultimate tube power of 350 Watt / 240 kV R
JIMA resolution 0.9 microns (µm) T
Paramount flexibility for versatile applications
Automatic Intensity Control (AIC) for continuous intensity of radiation
Automatic tube calibration for optimum performance
Easy maintenance with adjusted ready-to-use click-in cathodes and automatic tube venting
Unlimited lifetime
Technical Data
| Data | Product Line XC | |||
| Max. voltage (kV) | 160 | 190 | 225 | 240 |
| Min. voltage (kV) | 20 | |||
| Max. current (mA) | 3.0 R / 1.0 T | |||
| Min. current (mA) | 0.05 | |||
| Max. power, emission (Watt) | 350 R / 80 T | |||
| Max. power, target (Watt) | 300 R / 10 T | |||
| JIMA resolution (µm) | 2.0 R / 0.9 T | |||
| Tube type | Dual head | |||
| Target types | Reflection / Transmission | |||
| Target material (substrate/active layer) |
Tungsten / Beryllium/Tungsten |
|||
| Min. focus-object-distance (mm) | 4.0 R / 0.25 T | |||
| Opening angle (approx. °) | 30 R / 160 T | |||
| Mounting length incl. 90° HV plug (mm) | 718 R / 706 T | 810 R / 782 T | ||
| Tube weight (approx. kg) | 53 | 78 | ||
| R Reflection tube | T Transmission tube | ||||
Industry
Non-destructive X-ray inspections in research institutes
