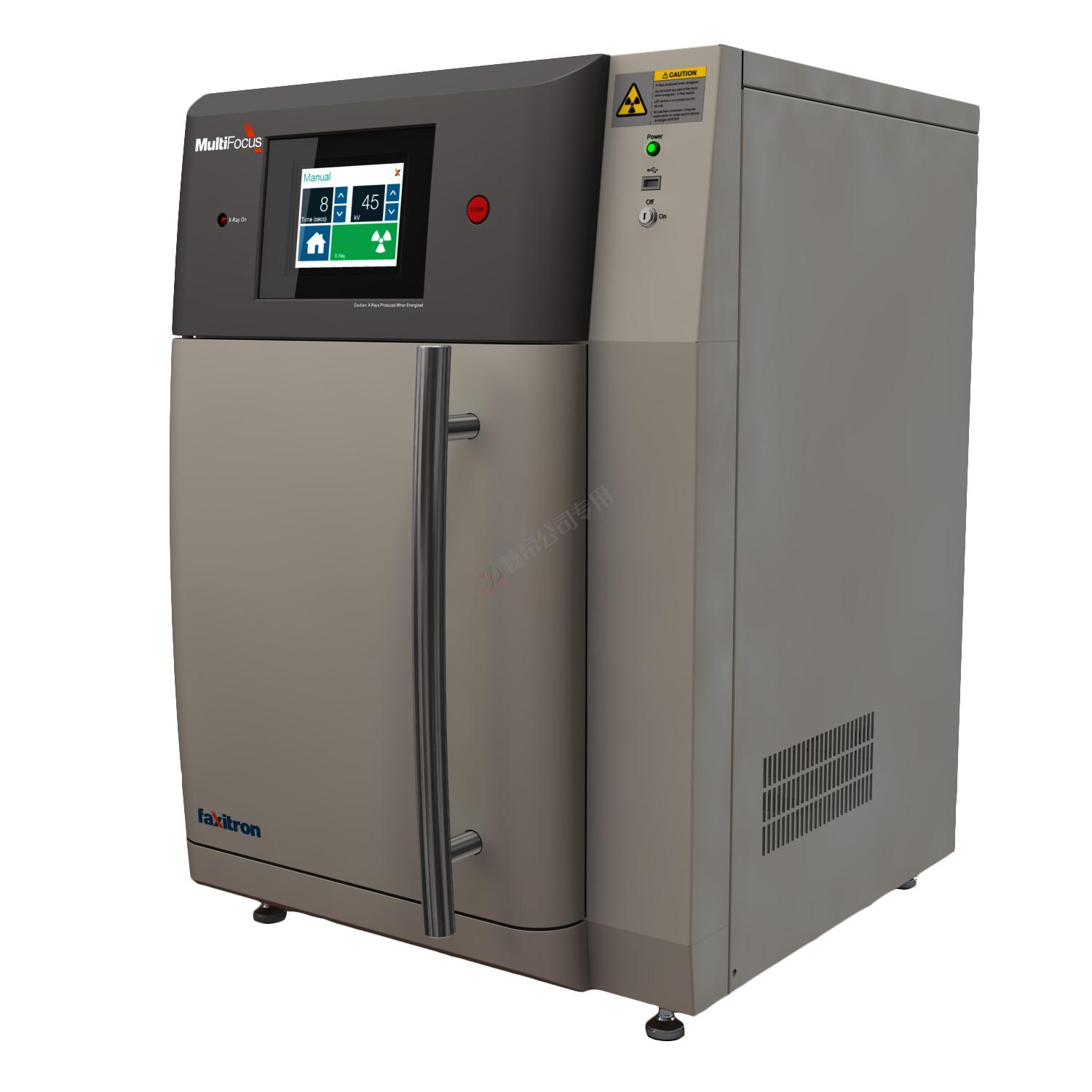

MultiFocus
10 x15cmCMOS detector coupled with wide energy range from 10 - 50kV makes MultiFocus ideal for imaging a broad range of samples. The 11µm focal spot and 8X geometric magnification provide up to 80 lp/mm resolution images.
The advanced Automatic Exposure Control allows the system to automatically select the appropriate exposure time and kV settings for the sample, with a single click of the mouse.
No additional x-ray shielding required
No specialized x-ray knowledge needed to operate
Plugs into any standard A/C outlet
Stainless steel inner chamber designed for easy cleaning
Laser centering guide to ensure proper sample positioning
Magnification shelf with field of view guides and automatic position detection provides for up to 5X geometric magnification with accurate measurements at any level
8X magnification tray provides up to 80 lp/mm resolution images for ex vivo and seed imaging
Single click calibration with auto object detect allows for simple, error-free calibration
One button operation with Automatic Exposure Control (AEC) optimized for a variety of samples (manual exposure settings also available)
Images instantaneously displayed on22”high resolution 2.3MP monitor (included)
Remote diagnostic and support over the web
Specification
10 - 50 kV |
|
Sample imaging area |
10cm x15cm(4" x 6") |
Pixel pitch |
48µm |
Spatial resolution |
Up to 80lp/mm at 8X geometric magnification |
Tube current |
1.0mA max (isowatt limited to 12 W) |
Focal spot size, nominal |
11µm |
Window filtration |
0.25" Be, molybdenum source |
Typical image acquisition time |
10 seconds |
Power |
90-240 VAC, 50/60 Hz |
Dimensions, external |
30” H x21”W x24”D (77cmx53cmx61cm) |
Dimensions, internal |
14” H x 12" W x12”D (39cmx39cmx56cm) |
Weight |
170 lbs (77 kg) |
