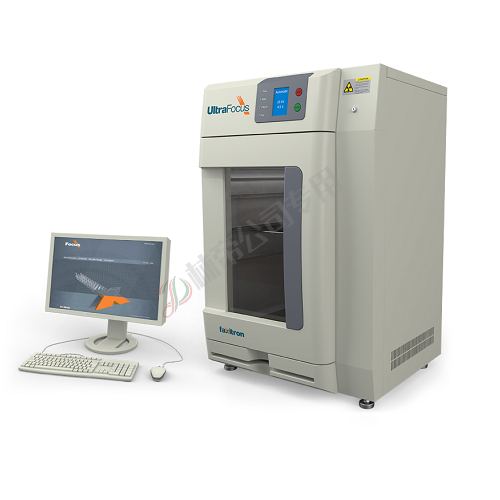

The compact and fully-shielded x-ray cabinet can be placed directly on the bench top in your lab or wherever you need easy access to imaging.

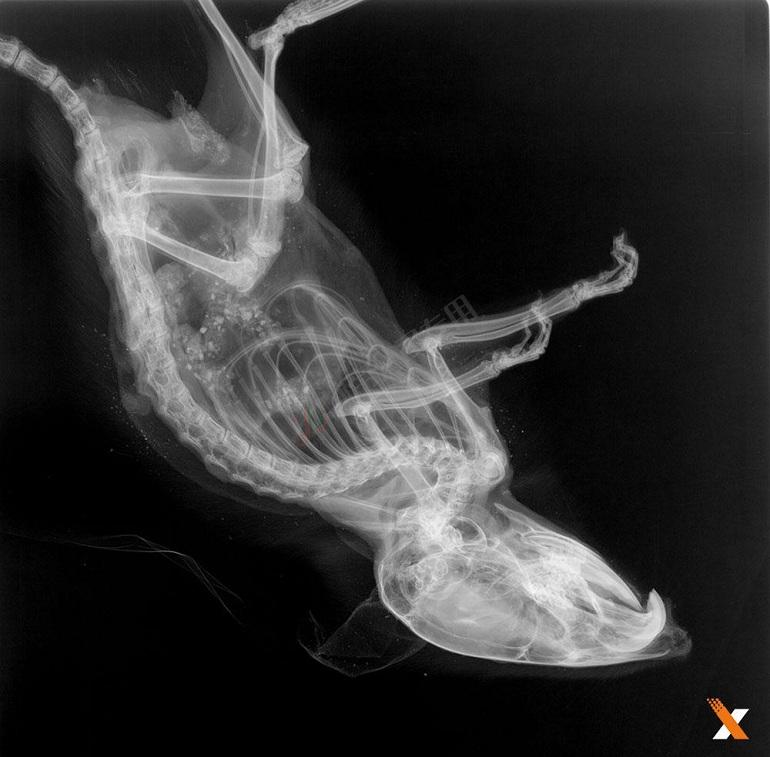

Multiple detector sizes coupled with the wide energy range from 10-100kV makes the UltraFocus ideal for imaging a broad range of samples. The 8µm focal spot and 6X geometric magnification provide 60lp/mm resolution images.
The advanced Automatic Exposure Control allows the system to automatically select the appropriate exposure time and kV settings for the sample, with a single click of the mouse.
- No additional X-ray shielding required
- No specialized X-ray knowledge needed to operate
- Plugs into any standard A/C outlet
- Stainless steel inner chamber designed for easy cleaning
- Laser centering guide & transparent window ensure proper sample positioning
- Magnification shelf with field of view guides and automatic position detection provides for up to 6X geometric magnification with accurate measurements at any level
- Single click calibration with auto object detect allows for simple, error-free calibration
- One button operation with Automatic Exposure Control (AEC) optimized for a variety of samples (manual exposure settings also available)
- Images instantaneously displayed on 22” high resolution 2.3 MP monitor
- Remote diagnostic and support over the Web
Energy range
10 - 60 kV
Sample imaging area
10cm x 15cm (4" x 6")
Pixel pitch
48µm
Spatial resolution
Up to 60lp/mm at 6X geometric magnification
Tube current
0.3mA max (isowatt limited to 12 W from 41-100 kV)
Focal spot size, nominal
8µm
Window filtration
0.01" Be, tungsten source
Typical image acquisition time
10 seconds
Power
100-240 VAC+/- 10% 50/60 Hz, 150 VA
Dimensions, external
23” W x 21” D x 36” H (59cm x 54cm x 90cm)
Dimensions, internal
15.4” W x 15.4” D x 22.2”H (39cm x 39cm x 56cm)
Weight
415 lbs (188 kg)
|
|
