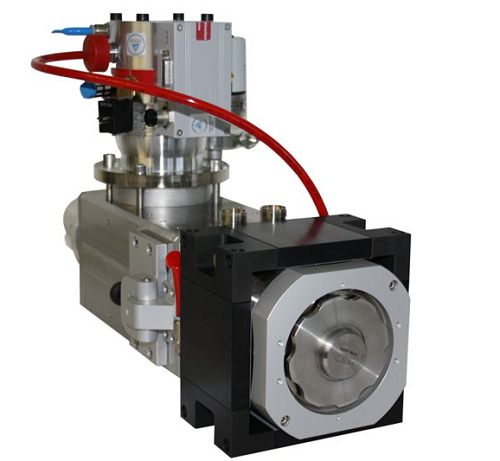

Transmission Microfocus X-ray Source THE
- X-Ray WorX （Germany）
- Product description: X-RAY WorX is one of the world's leading independent producers of high-resolution microfocus X-ray tubes for non-destructive material testing in industry and research.
Product introduction
Company Brief
X-RAY WorX is one of the world's leading independent producers of high-resolution microfocus X-ray tubes for non-destructive material testing in industry and research. Applications for microfocus X-ray tubes are among others X-ray microscopy, high-resolution computed tomography (CT) and digital radiography with rod anode tubes.
X-RAY WorX pursues the objective to develop microfocus X-ray tubes and to provide services that help customers to operate their X-ray systems efficiently, reliably and safely with high availability to meet today´s and future quality requirements and standards.
Highlights
Outstanding 25 Watt target power
Ultimate combination of resolution, target power, and magnification
Developed for inline and offline computed tomography, laminography, and planar computed tomography
Automatic Intensity Control (AIC) for continuous intensity of radiation
Automatic venting valve for long life of vacuum components
Technical Data
Industry
Data
Product Line THE
Max. voltage (kV)
160
190
225
240
Min. voltage (kV)
20
Max. current (mA)
1.0
Min. current (mA)
0.05
Max. power, emission (Watt)
80
Max. power, target (Watt)
25
JIMA resolution (µm)
2.0
Tube type
Transmission
Target type
High Energy
Target material (substrate/active layer)
Diamond / Tungsten
Min. focus-object-distance (FOD, mm)
0.3
Opening angle (approx. °)
160
Mounting length incl. 90° HV plug (mm)
625
717
Tube weight (approx. kg)
30
51
