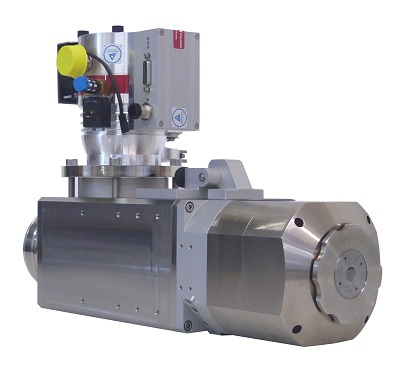

Transimission Microfocus X-ray Source - T
- X-Ray WorX （Germany）
- Product description: X-RAY WorX is one of the world's leading independent producers of high-resolution microfocus X-ray tubes for non-destructive material testing in industry and research.
Product introduction
Company Brief
X-RAY WorX is one of the world's leading independent producers of high-resolution microfocus X-ray tubes for non-destructive material testing in industry and research. Applications for microfocus X-ray tubes are among others X-ray microscopy, high-resolution computed tomography (CT) and digital radiography with rod anode tubes.
X-RAY WorX pursues the objective to develop microfocus X-ray tubes and to provide services that help customers to operate their X-ray systems efficiently, reliably and safely with high availability to meet today´s and future quality requirements and standards.
Highlights
Automatic Intensity Control (AIC) for continuous intensity of radiation
Automatic tube calibration for optimum performance
Easy maintenance with ready-to-use click-in cathodes and automatic tube venting
Easy to integrate into inspection systems
Flexible position of tube hinge, vacuum flange, and electronic connectors
Unlimited lifetime
Technical Data
Max. voltage (kV)
160
190
225
240
Min. voltage (kV)
20
Max. current (mA)
1.0
Min. current (mA)
0.05
Max. power, emission (Watt)
80
Max. power, target (Watt)
10
JIMA resolution (µm)
2.0
Tube type
Transmission
Target type
High Brightness
Target material (substrate/active layer)
Beryllium / Tungsten
Min. focus-object-distance (FOD, mm)
0.25
Opening angle (approx. °)
160
Mounting length incl. 90° HV plug (mm)
625
717
Tube weight (approx. kg)
30
51
Industry
Non-destructive X-ray inspections in electronic industry
Non-destructive X-ray inspections in automotive industry
Non-destructive x-ray inspection in medical industry
