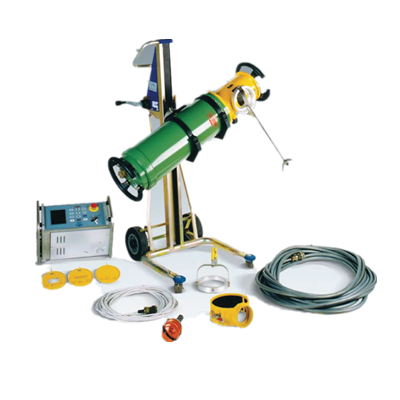

Portable X-ray System
- Product description: The MHF series has been designed for use in the field. With a dedicated keyboard, backlit LCD display and microprocessor command management the units are extremely simple to use. Its principal featu
Product introduction
NDT Product
Gilardoni NDT products span over a wide range of different equipments, aimed at offering the highest level of quality controls and measurements for industrial applications. Our X-ray technology covers a range from 30 kV to 450 kV , both using radiotechnology or fluoroscopy and it includes analysis of digital images. Furthermore, our ultrasound technology includes digital thickness gauges, digital flaw detectors, probes, accessories and components.
Monoblock Technical Features
Gilardoni S.p.A. has consistently invested in technological research, always finding innovative solutions to clients needs and has constantly strived to be on the forefront of X-ray technology. As a result of our expertise we are pleased to introduce this new series of high performance portable X-ray generators. The MHF series has been designed for use in the field. With a dedicated keyboard, backlit LCD display and microprocessor command management the units are extremely simple to use. Relevant features of the MHF series are the elevated power of the metalceramic tube and low ripple as required by industrial radiography applications. The new design makes the MHF monoblocs not only easy to use but also extremely reliable. The new trolley makes transportation and positioning the unit even more convenient.
Control Unit Technical Features
• Microprocessor controlled
• Automatic identification of tubehead model
• Automatic pre-heating
• Current and voltage stabilization at X-ray tube
• Timer: from 0 to 99' 59" with 1“ steps
• kV pre-reading
• Double X-ray start button to prevent accidental operation
• Safety features: door, thermostat, main circuit breaker, overload protection on the primary circuit
• Optional doubling of X-ray cable length
• Protection : IP 54
Control Unit Dimensions
The MHF series has been designed for use in the field.
With a dedicated keyboard, backlit LCD display and microprocessor command management the units are extremely simple to use.
Its principal features are elevated power of the metal-ceramic tube and low ripple as required by industrial radiography applications.

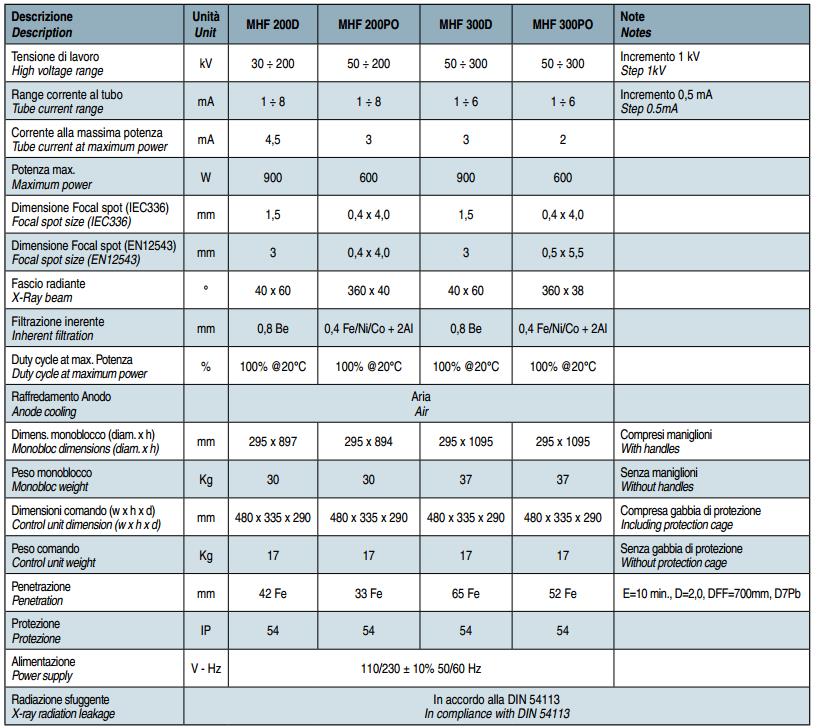

Technical Data
