Microfocus X-ray Tube SE

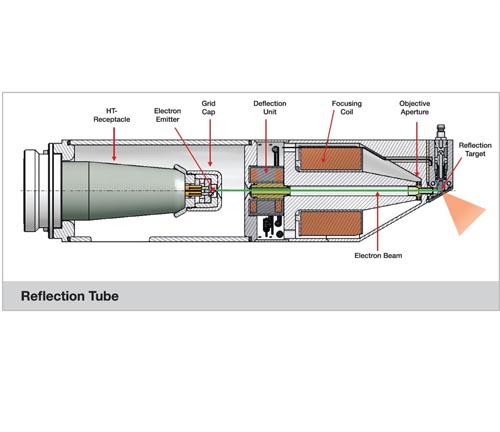

- Product description: The reflection tube or directional tube includes a massive metal target. The integrated cooling of the target allows much higher electron consumption than a transmission target. The useful radiation i
Product introduction
X-RAY WorX GmbH was founded by Holger Behnsen and Thorsten Fröba in Garbsen near Hanover in February 2010. The German high-tech company develops and produces open, high resolution microfocus X-ray tubes for non-destructive X-ray inspection and computed tomography. After four years only, the company has successfully established in the market and is one of the world's leading manufacturers for open, high-resolution microfocus X-ray tubes.
Product Line CT
Open microfocus X-ray tubes with reflection target optimized for computed tomography (CT)
Highlights
Ultimate tube power of 350 Watt / 300 kV
Automatic Intensity Control (AIC) for continuous intensity of radiation
Automatic tube calibration for optimum performance
Cooling of tube head and turbo pump increases accuracy of CT scans
Easy maintenance with adjusted ready-to-use click-in cathodes and automatic tube venting
Unlimited lifetime
Technical Details
| Data | Product Line CT | ||||
| Max. voltage (kV) | 160 | 190 | 225 | 240 | 300 |
| Min. voltage (kV) | 20 | 50 | |||
| Max. current (mA) | 3.0 | 2.0 | |||
| Min. current (mA) | 0.05 | 0.05 | |||
| Max. power, emission (Watt) | 350 | 350 | |||
| Max. power, target (Watt) | 300 | 300 | |||
| JIMA resolution (µm) | 2.0 | 3.0 | |||
| Tube type | Reflection | Reflection | |||
| Target type | High Power | High Power | |||
| Target material | Tungsten | Tungsten | |||
| Min. focus-object-distance (mm) | 4.0 | 4.0 | |||
| Opening angle (approx. °) | 30 | 30 | |||
| Mounting length incl. 90° HV plug (mm) | 706 | 782 | 1136 | ||
| Tube weight (approx. kg) | 36 | 50 | 66 | ||
Industries
Non-destructive X-ray inspections in automotive industry, e.g.:
* Electronic assemblies
* Electronic control units
* Micro-mechanical devices
* Plugs and crimps
* Battery packs
Non-destructive X-ray inspections in research institutes, e.g.:
* Plastics, ceramics, light alloys
* Compounds, fibre reinforced materials
* Organic materials, seeds, tree trunks
* Soils, ice drilling cores
* Concrete, rocks
* Archaeological finds, paintings, statues
* Superconductive material
Subject to change without prior notice
