Linescan X-Ray

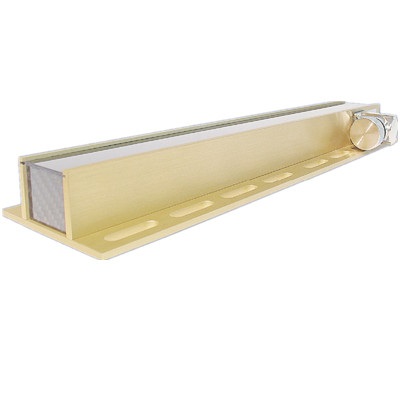

Product introduction

General Principle

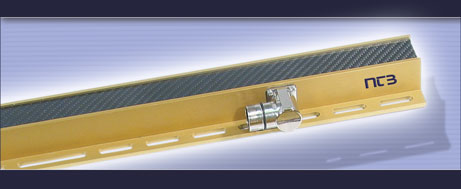

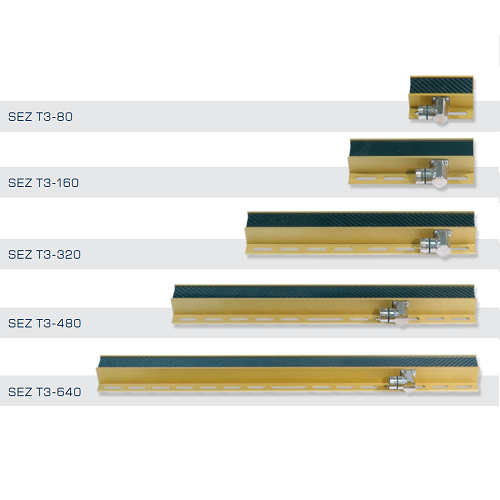

The digital linescan x-ray cameras of the SEZ series have been developed by NTB especially for the operation in digital x-ray inspection. The x-ray camera is the result of an intensive research in the field of digital x-ray technology. A continuous further development of the SEZ-T3 and the SEZ-W line suits the cameras for the use in most different applications and requirements.

A robust construction for operations from 20 kV up to 450 kV guarantees a long life time and resistance against mechanical strain. The slit collimators of the cameras make them highly insensitive to scattered rays. The hardware pixelbinning (=> electronic grouping of neighboring pixels to one pixel) enables a variable resolution from 83 µm to1.3 mm. As the pixelbinning is freely adjustable, it is possible to realize applications which require a very high resolution as well as applications with very high scanning speeds (up to80m/min) with one and the same camera system.

The high dynamic range (12 bit A/D conversion) supplies x-ray images with up to 4096 greylevels. The x-ray images can be evaluated, processed, archived, transmitted or used for documentations. It is possible to integrate the camera system into third-party software by the use of the supplied software library (DLL). Thereby, custom specific solutions up to the fully automatic acquisition and evaluation of the x-ray images become possible.

The digital x-ray cameras are highly economic and future-oriented: There are no overhead costs for film, chemicals and film processing. The archiving of all data is space saving, as many x-ray images can be saved on one small data medium (hard disk / CD / DVD).

The linear x-ray camera can be integrated as a digital extension in already existing x-ray units or can be supplied as complete x-ray system.

Highlight

High resolution: 12 pixel/mm = 83 µm

Wide dynamic range: 12 bit A/D conversion

High scanning speed: up to80 m/min

Low operating costs: no film and no processing

Insensitive to scattered x-ray

Multicam up to three cameras on one PC

Funtional Principle

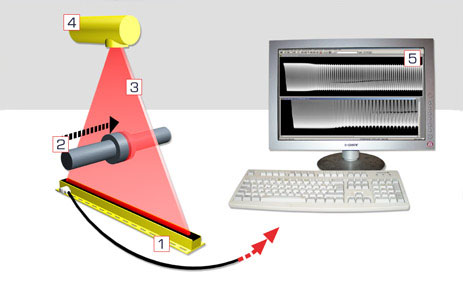

The outstanding performance of the NTB digital linear x-ray camera is achieved by the use of the unique and revolutionary x-ray sensitive detector developed by NTB. A scanning operation, in which either the specimen (2) or the camera (1) plus x-ray source (4) are progressively advanced, generates a 2D image line by line (object length determines the scanning distance). During the scanning process ultra fast A/D converters digitize the detector signals and generate a 12 bit (=4096 greylevels) image on the screen (5).

Compared to regular film based x-ray systems, NTB's digital x-ray cameras have a significant higher dynamic range. Where an x-ray film is totally over- or underexposed, the SEZ cameras still deliver high quality x-ray images. Consequently, objects composed of varied materials or objects with large thickness differences may be scanned in one single process. The x-ray images on the screen can directly be zoomed and enhanced for detailed evaluations or measurements. The scanned images can be archived, incorporated in reports or electronically transmitted.

PCI Interface Card and Piggy-back imaging card

Scope of supply

* X-ray camera

* PCI interface card

* Piggy-back card

* X-ray software
