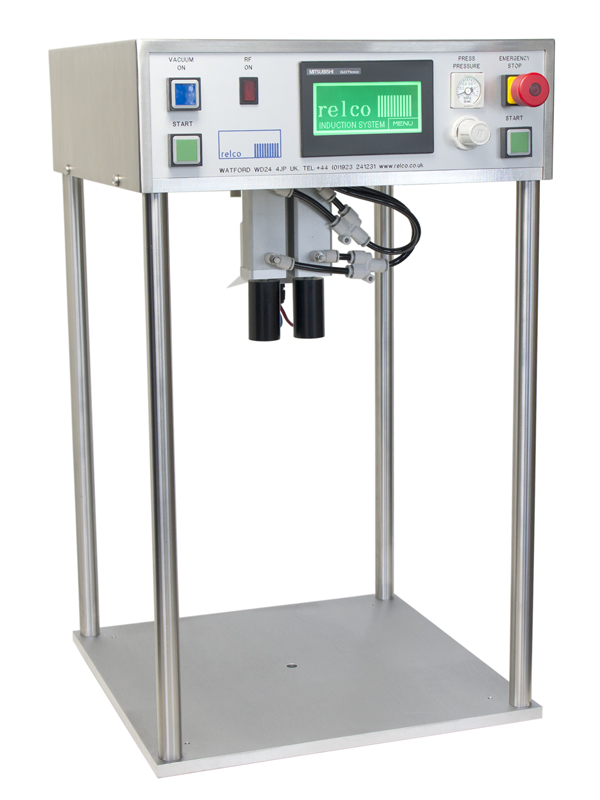

Relco Semi-automatic Capless Induction Sealing Machine MIT
- Product description: The MIT-2 operates semi-automatically and allows for the direct application of a foil to a container without the need for a cap using our capless induction sealing process. With the correct sealing he
Product introduction
The MIT-2 operates semi-automatically and allows for the direct application of a foil to a container without the need for a cap using our capless induction sealing process. With the correct sealing head, it is possible to seal round, non-round, 3D or irregular shaped containers made from plastics, glass, metal or ceramic.
The Relco MIT-2 is a great starting point for any packaging development using an induction sealing process. This system allows users to accurately test the direct application of a foil to a container or other component with full control over all of the sealing parameters (induction welding time, induction power level, cooling time and sealing head pressure) without the need for expensive highly automated equipment. Since the MIT-2 is powered by the same induction generator (Relco P-800) as is used in our high speed automatic machinery, trials and development can be done in full confidence that the results will be replicated on commercialisation.
Feature
Direct contact induction sealing head
Touch screen HMI for sealing parameter control
Integral 800W air cooled digital induction generator
Universal system – seals any size/type of container
Vacuum foil location for precision seal placement
Specifications
Requirements |
description |
Mains Power |
220-240v a/c Single Phase (5A) |
Compressed Air |
1-7 Bar / 15-100 p.s.i. |
Components |
description |
Pneumatics |
1x40mmbore SMC50mmStroke Head Cylinder |
|
SMC 10 Bar Max. Pressure Regulator |
|
SMC 10 Bar Max. Pressure Gauge |
Vacuum |
SMC (ZH10B) Venturi Vacuum Generator |
Solenoids |
SMC 24v DC Solenoid Valves |
PLC |
Mitsubishi Fx1n |
HMI |
GOT1020 |
Generators |
Relco P800 (800W) solid state induction generator |
Sealing Heads |
As required for application with internal vacuum pick & place device |
Safety |
Independent 2-hand cycle start with interlock Emergency Stop Button |
Size & Weight |
description |
Dimensions |
Footprint350mmx350mm, ControlBox350mm x350mmx115mm |
Weight |
30Kg |
