Brief
This line of products is based on 6-axis robot arms. We offer complete solutions aimed at the analysis of samples in X-ray, neutron and other beam types, using a large variety of techniques.
“1D” functionalities: Automated transfer and analysis of single samples
“1D” functionalities family: the robot arm is used as a single-axis goniometer for“small” samples (samples that can be centered on the last physical axis such as sample rotation during analysis involves only this axis). Sample transfer capability can also be involved.
|
List of functionalities |
* 1D Crustal Direct or 1D-CD * 1D Crystal Direct+ or 1D-CD+ (to be launched soon) * 1D Fast Cryo Transfer or 1D-FCT * 1D Standard Cryo Transfer or 1D-SCT
|
Main features |
The robot arm is used as a goniometer for the analysis of a single sample, such as: Thanks to centering stages, the part of the sample to be analyzed is centered on the last robot axis. This axis is oriented as needed, and translated so that the sample is placed in the beam. Rotation during exposure can be performed with a very high accuracy (see specifications below).
|
Domain of application |
• Macromolecule crystallography.
|
Detailed features |
1D functionalities include:
|
Advantages |
With the 1D functionalities, sample transfer and analysis can be performed by a single system: the robot arm, for a higher throughput and reliability than conventional systems.
|
Specifications |
In this category, we include functionalities that require
|
Compatibility |
• Beam size down to 50 microns.
• “1D Fast Cryo Transfer” is suitable for high throughput. |
图片 |

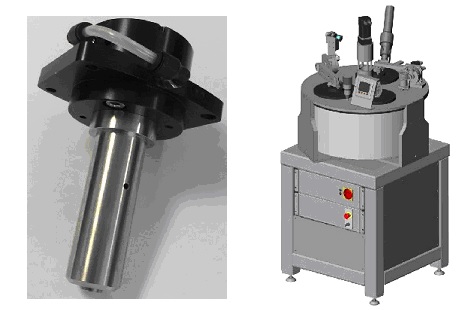

Left: robot tool for handling of samples mounted on magnetic base.
Right: automated Dewar for storage of samples in liquid nitrogen prior to analysis.
|
Components |
• Specificgoniometer head robot tool.
|
A movie is available at: http://www.natx-ray.com/products/lqgfmrcsil5mn67/G-Rob_1D.mp4
|
