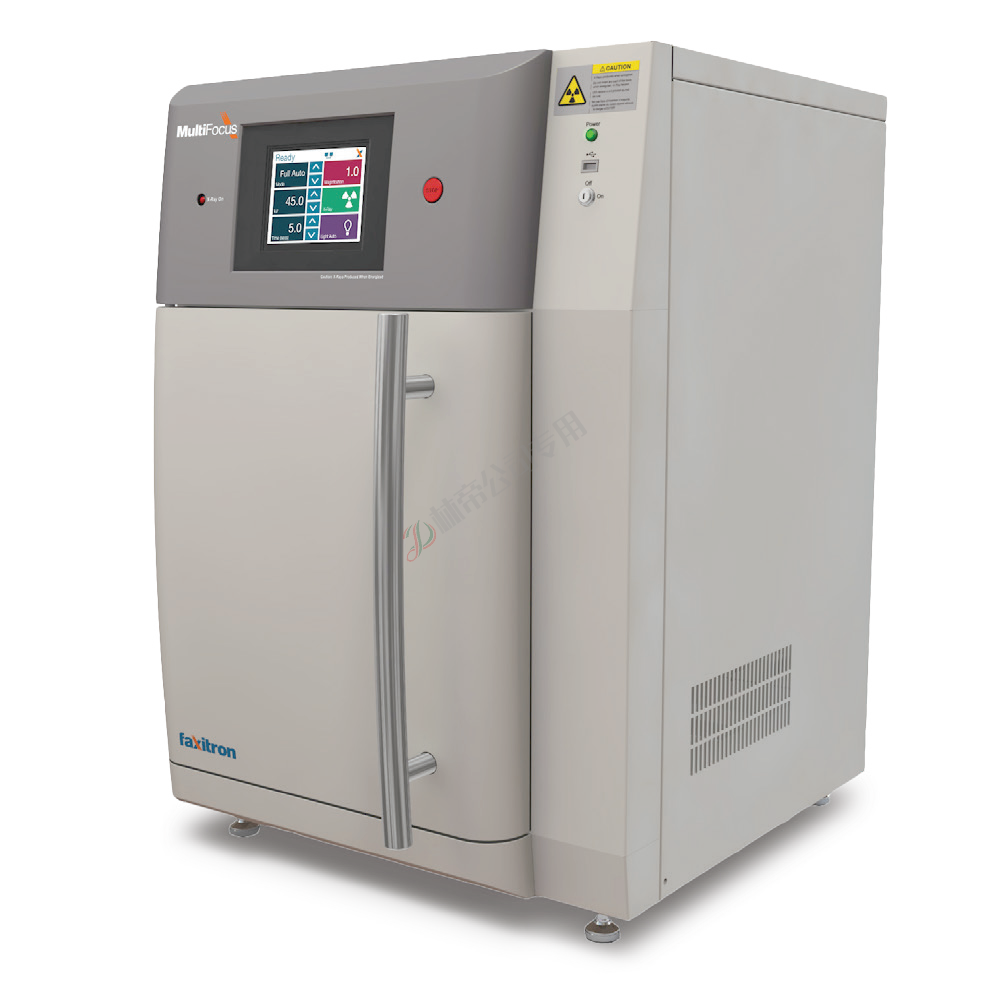

Faxitron Micro Focus Imaging System

Product introduction

MultiFocus

10 x15cmCMOS detector coupled with wide energy range from 10 - 50kV makes MultiFocus ideal for imaging a broad range of samples. The 11µm focal spot and 8X geometric magnification provide up to 80 lp/mm resolution images.

The advanced Automatic Exposure Control allows the system to automatically select the appropriate exposure time and kV settings for the sample, with a single click of the mouse.

No additional x-ray shielding required

No specialized x-ray knowledge needed to operate

Plugs into any standard A/C outlet

Stainless steel inner chamber designed for easy cleaning

Laser centering guide to ensure proper sample positioning

Magnification shelf with field of view guides and automatic position detection provides for up to 5X geometric magnification with accurate measurements at any level

8X magnification tray provides up to 80 lp/mm resolution images for ex vivo and seed imaging

Single click calibration with auto object detect allows for simple, error-free calibration

One button operation with Automatic Exposure Control (AEC) optimized for a variety of samples (manual exposure settings also available)

Images instantaneously displayed on22”high resolution 2.3MP monitor (included)

Remote diagnostic and support over the web
