JIMA Chart for 2D and 3D
- Product description: Continuous monitoring of system resolution ensures high quality results of microfocus or nanofocus X-ray systems. Japan Inspection Instruments Manufacturers’ Association (JIMA) conducts vigorous activ
Product introduction
Continuous monitoring of system resolution ensures high quality results of microfocus or nanofocus X-ray systems.
Japan Inspection Instruments Manufacturers’ Association (JIMA) conducts vigorous activities concerning various testing equipment including nondestructive testing equipment.
The JIMA (Japan Inspection Instruments Manufacturers‘ Association) resolution tests allow the monitoring of the X-ray image chain down to line structures with distance of 0.4 microns.

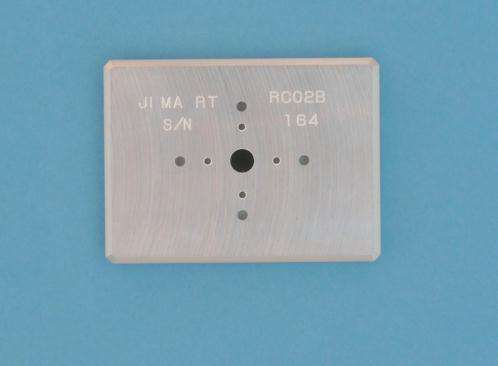

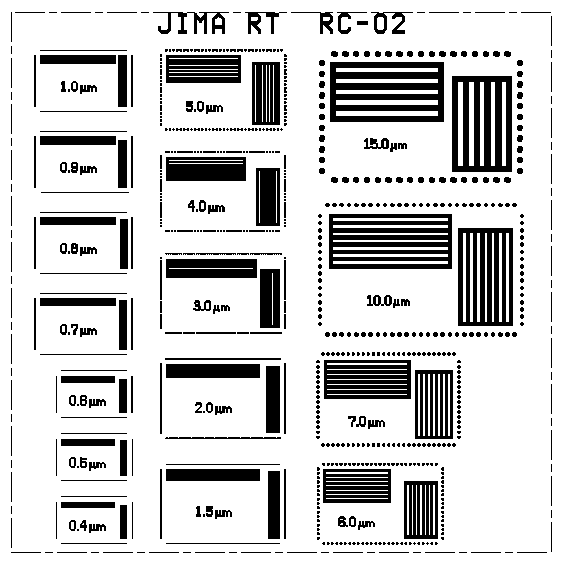

JIMA RT RC-02

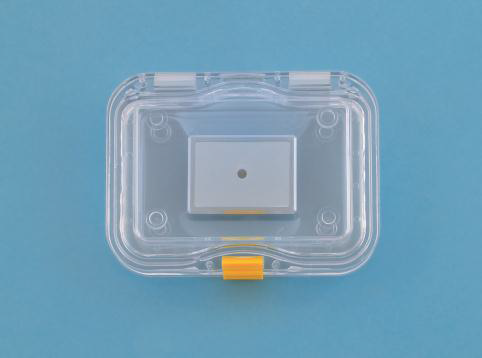

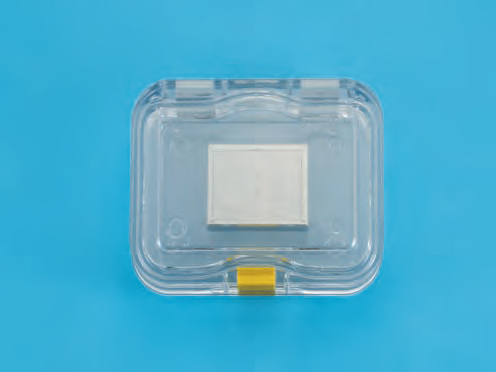

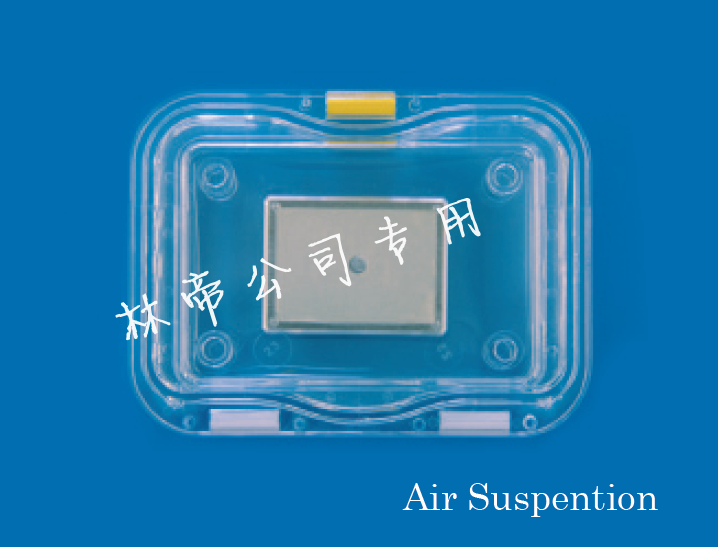

protective case
Overall dimensions (WxDxT): 40 x 30 x 5 mm
Chip size (WxDxT): 5 x 5 x 0.06 mm
Layout: L-shape
Line / space size: 16 sizes:
0.4μm,0.5μm,0.6μm,0.7μm,0.8μm,0.9μm,1.0μm,1.5μm,
2.0μm,3.0μm,4.0μm,5.0μm,6.0μm,7.0,10.0μm,15.0μm

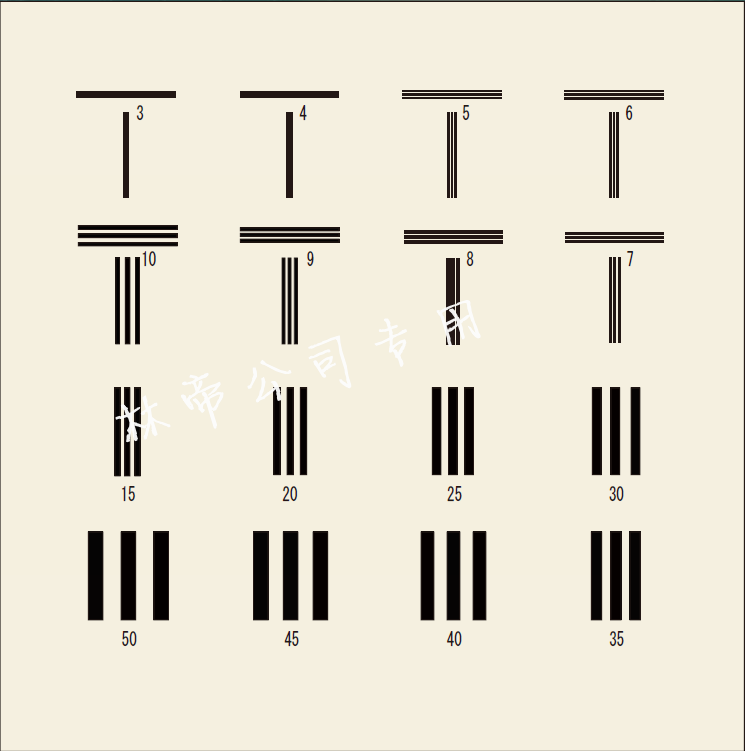

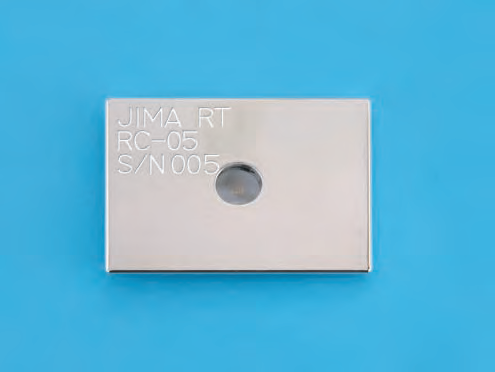

JIMA RT RC-05
protective case
Overall dimensions (WxDxT): 40×30×3mm
Chip size (WxDxT): 8×8×0.2mm
Layout: T-shape (3-10μm)
I-shapeI (15-50μm)
Line / space size: 16 sizes
3μm,4μm,5μm,6μm,7μm,9μm,10μm (Tshape)
15μm,20μm,25μm,30μm,35μm,40μm,45μm,50μm (I shape)

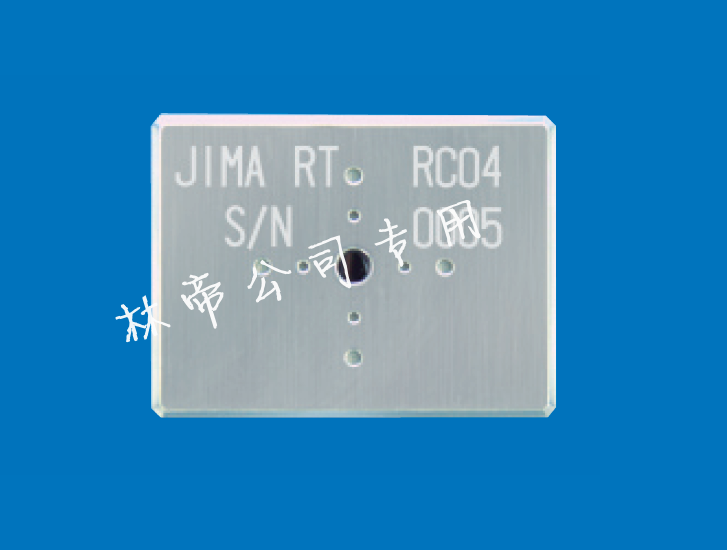

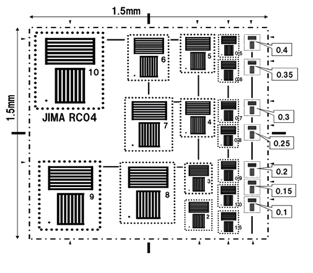

JIMA RT RC-04
protective case
Overall dimensions (WxDxT): 40×30×5mm
Chip size (WxDxT): 5×5×0.015mm
Layout: T-shape
Line / space size: 32 sizes:
0.1μm,0.15μm,0.2μm,0.25μm,0.3μm,0.35μm,0.4μm,0.5μm,0.6μm,0.7μm, 0.8μm,
0.9μm,1.0μm,1.5μm,2.0μm,3.0μm,4.0,5.0μm,6.0μm,7.0μm,8.0μm,9.0μm,10.0μm,

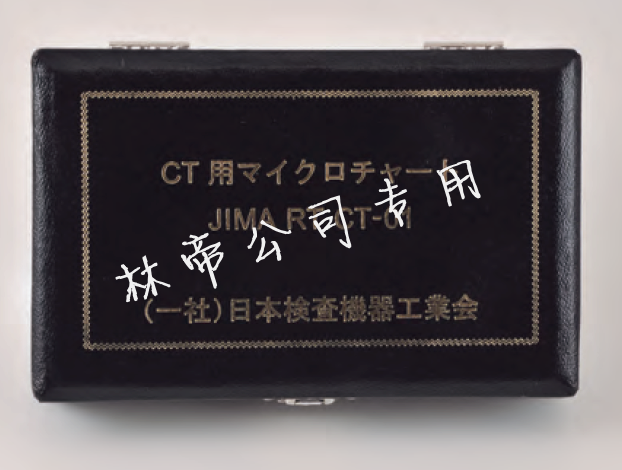

JIMA RT CT-01 (special in CT system resolution test)
protective case
Layout: T-shape
Line / space size:5size3μm,4μm,5μm,6μm,7μm
