X-ray Imaging System-UltraFocus60

Product introduction

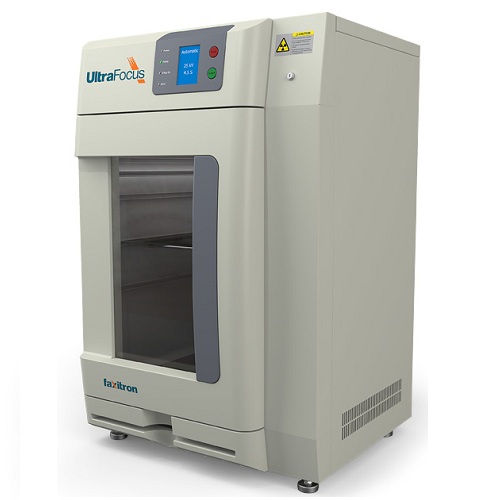

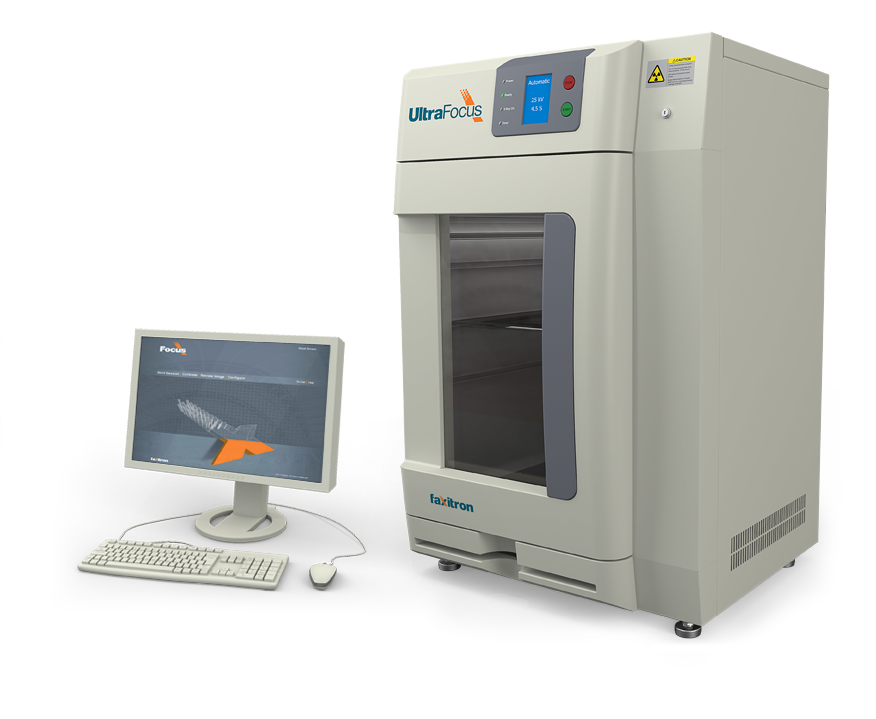

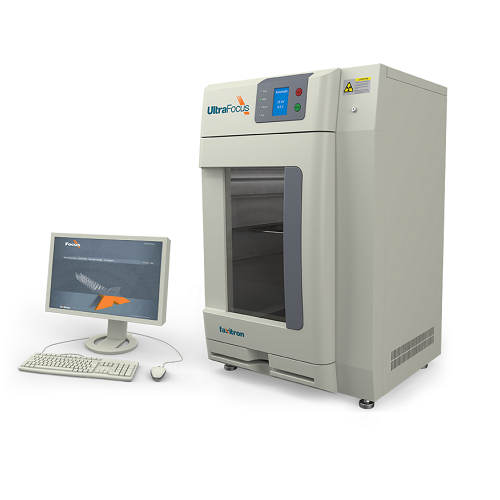

The compact and fully-shielded x-ray cabinet can be placed directly on the bench top in your lab or wherever you need easy access to imaging.

Multiple detector sizes coupled with the wide energy range from 10-100kV makes the UltraFocus ideal for imaging a broad range of samples.  The 8µm focal spot and 6X geometric magnification provide 60lp/mm resolution images.

The advanced Automatic Exposure Control allows the system to automatically select the appropriate exposure time and kV settings for the sample, with a single click of the mouse.

• No additional X-ray shielding required
• No specialized X-ray knowledge needed to operate
• Plugs into any standard A/C outlet
• Stainless steel inner chamber designed for easy cleaning
• Laser centering guide & transparent window ensure proper sample positioning
• Magnification shelf with field of view guides and automatic position detection provides for up to 6X geometric magnification with accurate measurements at any level

• Single click calibration with auto object detect allows for simple, error-free calibration
• One button operation with Automatic Exposure Control (AEC) optimized for a variety of samples (manual exposure settings also available)

• Images instantaneously displayed on 22” high resolution 2.3 MP monitor
• Remote diagnostic and support over the Web
