Transmission tubes with 50 W target power - the “Plus” for highest resolution
Due to the increasing demand for high-resolution microfocus X-ray tubes up to an acceleration voltage of 240 kV, X-RAY WorX has extended the product families TC and TCNF with the models TCHE Plus and TCNF Plus.

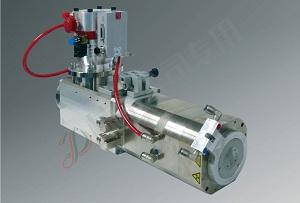

TCHE Plus
Compared to other TC family models, the TCHE Plus model offers a water-cooled diamond target. It allows a JIMA resolution of 0.9 microns at 1 watt target power and a maximum target power of 50 watts, still providing 15 microns resolution.
Using the optional High Resolution Diamond Target you will even achieve a resolution of 0.5μm. The TCHE Plus model is offered up to an acceleration voltage of 240 kV.

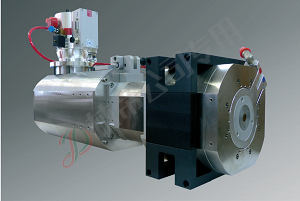

The expansion of the TCNF product line with the internally cooled models XWT-160-TCNF Plus and XWT-190-TCNF Plus, also featuring a water cooled High Resolution Diamond Target, meets many requirements of users in semiconductor industry and materials research.
Increasing the maximum target power up to 50 watts also means a significant expansion of possible applications while still allowing for highest resolution of 0.5μm in the lower performance range.
