What is "ISee! Professional"?
ISee! Professional is the third generation of our successful software for industrial
radiology targeted at the industrial user and designed to increase reliability,
flexibility and efficiency of radiographic testing.
ISee! Professional offers
- direct support of all major digital flat panel detectors, CR-readers and film digitizers from the same software
- advanced display and measurement tools, compliant to current standards and/or tailored for specific inspection tasks
- state of the art image processing algorithms and computer-aided evaluation tools
- support of all popular NDT image formats, including ASTM E2339-11 / E2699-11 / E2738-11 (DICONDE)
- control of different X-ray sources directly from the software
- integrated image acquisition assistants and generation of inspection reports
- advanced scripting and customization possibilities, easy integration in the customer's IT-infrastructure, etc.
ISee! Professional designed by the author of the well-known ISee! software, which became the de-facto standard and the reference for laboratory RT-software over the last decade. ISee! Professional continues and extends ISee! on the new technological basis with the primary focus on usage in productive environment.
Different tasks - One Software
One of the key properties of ISee! Professional is its neutrality and independence from hardware manufacturers. With ISee! Professional it is possible to acquire and analyse images from different DDA detectors, CR-readers and film digitizers using exactly the same software.
Why is it important? Despite the variety of different systems available
these days in analogue, CR or DDA segments, it is usually a combination of
them, depending on workflow, quality requirements and productivity that
produces the optimum result. No one detection technology is able to cover
all of your needs alone and you will always need to have at least two of
them. Using different software products with different imaging
technologies, or with devices from different manufacturers, makes things only
more complex and more expensive than if only one program is used.
Even if the majority of tasks at one's site can be accomplished using DDAs
without resorting to film or CR, it is unlikely to be able to manage all of
them with the same detector. Different requiremets to resolution, size,
speed, etc., up to connectivity, are all factors why one wants to have
different detectors. With ISee!
Professional the great majority of them, if not all of them, can be
used with the same software!
Made for NDT
Contrary to
its competitor products, ISee!
Professional is not a fork of some medical or security software.
Instead, it is made to satisfy specific requirements of NDT people, i.e. it
offers special instruments to solve particular inspection tasks:welding seams inspection after ISO 17636-2, heat exchanger testing, corrosion and erosion inspection (wall-thickness
measurement), etc.
Instead of providing a heap of general purpose filters barely useful for enhancing of radiographic images and leaving large room for misuse and errors, ISee! Professional is supplied with a concise set of application-optimized tools proven in over a decade of practice and which are easy to understand and to use.
With ISee! Professional one can go through the whole life circle of a digital radiographic image using only one software: image acquisition, viewing and enchancement, management (i.e. supplying of meta-information for archiving and future use), measurement and analysis, sharing (e.g. for remote assessment through higher qualified personnel) and generation of inspection reports.
The friendly, fully customizable, yet very powerful user interface is one of the qualities which distinguish ISee! Professional from competing solutions.
Modular and flexible
ISee! Professional is flexible and universally applicable thanks to its modular design and powerful Plug-In API. Modules can be easily added or removed according to the specific requirements of a particular user. Modular design allows us to offer solutions to our users which best fits their requirements and needs. This finally boils down to lower costs, clearer handling and better efficiency. Besides standard modules, custom on-demand developments are possible in an economical way.
ISee! Professional implements a powerful build-in scripting language, offering a rich set of functions and opening up a range of possibilities. This allows advanced users to write fairly sophisticated programs to be executed within it. By writing their own programs (scripts) users can perform customization or automation of some processes, e.g. define a certain workflow, perform batch processing, controll external devices, do data collection, etc. One example is image acquisition for CT and laminography applications. Vision in X can also write and provide such scripts according to user requests, so that they will have a good starting point for further work.

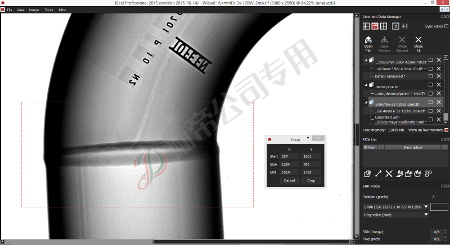

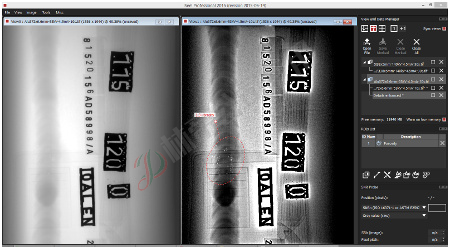

Various image processing,image analysing and measurement tools
This group of extensions includes tools for:
- image enhancement (a concise preselected set of useful filters)
- image manipulation (crop, resize, rotate, etc.)
- detector calibration and bad pixel detection and corrections (must have for DDA but not necessary for people who scan films or use CR)
- SNR and SRb measurement modules

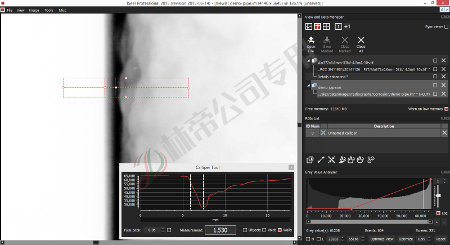

- grey value distribution analysis and dynamic profiling tool with numerous extended functions
- arrow and region annotation tools
- whall thickness measurements
- dimentional and area measurements
- etc.

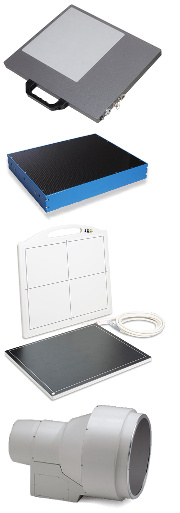

ISee! Professional supports various imaging hardware made by different
manufacturers. All major types of flat panel detectors are supported:
- Perkin Elmer XRD series (aSi) connected via Ethernet, i.e. XRD 0822 AO/AP and XRD 1622 AO/AP
- Perkin Elmer XRD series (aSi) on PE's proprietary interface (cupper and fiber optics), e.g. XRD 1611 AP/CP
- Varian PaxScan detectors connected via Ethernet (e.g.: PaxScan 1308D, 1308DX, 1308DXT, 1313D, 1313DX, 1313DXT, 2520D, 2520DX, 2520XI/V, 2530C, 2530DX, 2530HE, 3024M, 3030D, 4030D, 4336W, 4336X, 4336R)
- Dexela GigE and CameraLink detectors (all models)
- Vidisco detectors (Flash X, Blaze X, Rayzor X, Bolt X)
- Ajat CdTe direct converting detectors
The list above only contains OEM names. The relabeled versions of the detectors distributed under different names are of course supported as well.
Digital fluoroscopes can be used with ISee! Professional as well. Supported are devices built with:
- all industrial FireWire cameras
- Basler GigE cameras.

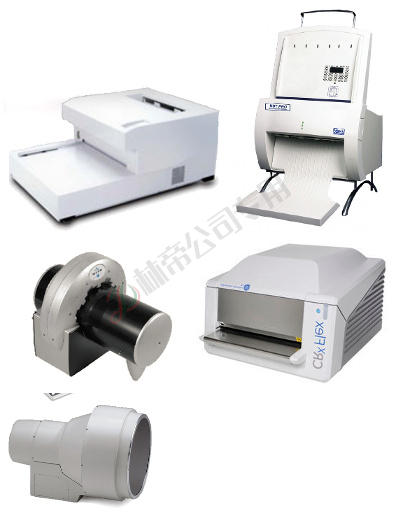

Users of CR and those
who perform film digitalization may also find their devices under the following list of
supported ones:
- GE CRx Flex and CRx 25P CR-Readers
- Fujifilm Dynamix serie of CR-Readers
- Dürr CR-readers in all flavours
- (e.g. HD-CR 35 NDT or HD-CR 43 NDT)
- Array 2905 Laser Film Digitizer
- (our recomendation for quality film scanning)
- Vidar Film Digitizers
- (e.g. NDT PRO Industrial Film Digitizer)
- Lumisys Lumiscan LS85 / LS75
- resp. Kodak Industrex Film Digitizers
If the device you are searching for is not listed above,please contact us - we will find a solution.
Controlling of X-ray sources
ISee! Professional offers the same flexibility when it comes to choosing X-ray sources as it does with selection of imaging hardware. Using one or another ISee! Professional module users can control their X-ray sources directly from the software. Currently supported generators are:
· Seifert/GE Titan and Eresco series
· Yxlon/Comet
· IMS
· ICM
· Medex
Support for Spellman and Gulmay will follow soon according to the current road map.
Assistants and reports
This group of extensions includes a module for automatic generation of inspection protocols (in different formats) and various auxiliary modules, e.g. acquisition assistants. They are not strictly necessary but make a difference when the target is an efficient and accurate operation.
