Product description

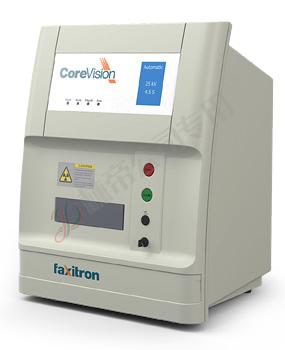

The Faxitron CoreVision increases the standard of care for your patients by eliminating delays waiting for verification of core samples. With one touch of the button a successful biopsy procedure is confirmed and images can be instantly sent to multiple destinations without the need to interrupt mammography workflow.
Features
· Instant confirmation of a successful biopsy procedure
· No additional X-ray shielding required
· No specialized X-ray knowledge needed to operate
· Small footprint to minimize intrusion in point of care environment
· Uses radiographically optimized core containers for easy alignment and secure transport
· One button operation with Automatic Exposure Control (AEC) for optimal image quality
· AEC optimized for detecting micro-calcifications
· Leading-edge image processing software for calcification enhancement
· Images instantaneously displayed on 24'' high resolution 3.7 MP monitor (included)
· DICOM compliant software with efficient access to modality work list and PACS Store & Print options
· Ability to send multiple annotated images to PACS at a touch of a button
· Automatic calibration and self-diagnostic capability
· Remote diagnostic and support over the web
Specifications
|
Detector size |
5cm x 10cm (2" x 4") |
|
Energy range |
20-30 kV |
|
Tube current |
0.35mA |
|
Spatial resolution |
14 lp/mm with automatic 1.4X geometric magnification |
|
Window filtration |
0.2mm Be, tungsten source |
|
DICOM Interface |
Store, Annotate, Print & Modality Work List |
|
Power |
120 VAC 150 W Max / 240 VAC 150 W Max. |
|
Dimensions |
15" W x 15" D x 19" H (38 cm x 31 cm x 48 cm) |
|
Weight |
40 lbs. (18 kg) |
