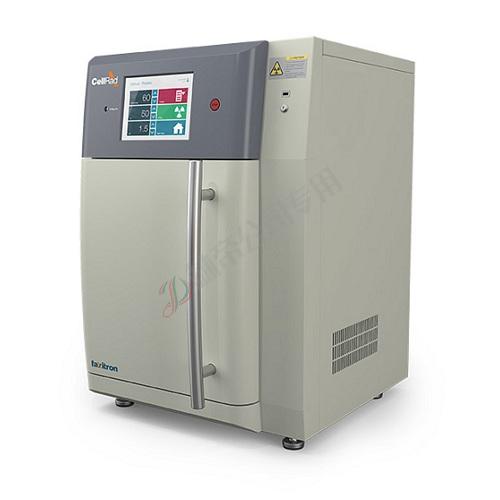

Faxitron's CellRad is a dedicated, compact cabinet X-ray cell irradiator which can be placed directly onthe lab bench top - no need to transport your cells to a core irradiation facility.
The CellRad system allows you to irradiate cells in your lab without compromising sterility or security. The simple touch-screen control panel makes the CellRad easy to use for those with no x-ray training.
A smaller, simpler, safer and less costly alternative to radioisotope (gamma) and even high-power X-ray irradiators. There are no costly licensing, security, or source maintenance fees.
- NRTL Certified by Intertek for Electrical Safety
- No additional X-ray shielding required
- No specialized X-ray knowledge needed to operate
- Plugs into any standard A/C outlet
- Automatic warm-up for extended tube life
- Password login for system security
- Prescriptive, touchscreen control interface for ease-of-use
- Integrated dosimeter with advanced Automatic Dose Control (ADC) for setting exact dose
- Remote diagnostic and support over the web
Energy range | 10-150 kV |
Tube current | 0.1-5 mA |
Tube Power | 750 W |
Dose Rate (150kVp, 5.0mA) |
up to: 70Gy/min (unfiltered) up to: 17Gy/min (0.5mm Al) |
Focal spot size, nominal | 1.0 x 1.4 mm |
Inherent filtration | 1.6 mm beryllium |
X-ray beam angle | 40° divergence |
Maximum coverage | 12" (30 cm) |
Source to object distance | 17" (44 cm) |
Exposure time | 5 sec to 180 min (1 sec increments) |
Power requirements | 100 - 230 VAC +/- 10%, 50 - 60 Hz |
Cooling | Integrated closed-loop heat exchanger |
Specimen turntable | Electrically operated, 2 RPM |
Dimensions, external | 30” H x 21” W x 24” D (77 cm x 53 cm x 61 cm) |
Dimensions, internal | 14” H x 12” W x 12” D (37 cm x 30 cm x 32 cm) |
Weight | 460 lbs (210 kg) |
Shipping Weight |
540 lbs (245 kg) |
